|Unit Price:||USD 6.1000 / Kilogram |
|Min. Order:||500 Kilogram|
|Delivery Time:||15 Days|
Model No.: PEW/130
Insulation Level: C
Certification: ISO9001, RoHS
Application: Transformer, Instrument, Electrical Equipment, Motor, Other, Motor
Shape: Round Wire
Conductor Material: Copper Wire
Breakdown Voltage: ≥2.5KV
Shock Temperature: ≥220℃
Feature: Solderable And Self-bonding
Insulation Thickness: Double Or According To Your Reqiurement
Packaging: Plastic bobbin+Carton+Pallet
Productivity: Above 50 Thousand Ton
Place of Origin: Xinxiang, Henan, China
Supply Ability: 8000 Ton /Month
Certificate: IATF16949 / ISO9001
HS Code: 855441100
Product information :

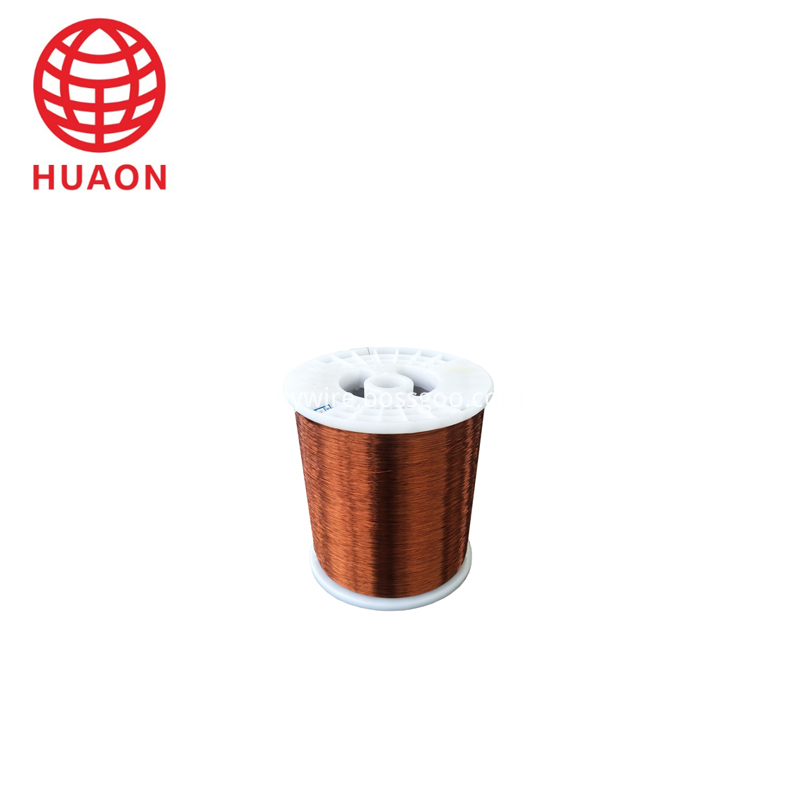

Polyester enameled round copper wire class 130
The product can work continuously 130℃and 150℃.It has excellent and electrical properties and is suitable for winding in general motors of class B and F and coils of electrical instrument
Self-supporting coils and windings in telecommunications, field coils, magnet coils, reactance coils, dry and oil-filled transformers, windings of AC and DC motors of class H, motors and generators for the aviation and marine industries, motors and equipment in the nuclear field
Diameter(mm): 0.31 ~ 3.0
130 (Class B)
IEC; ISO 9000; ISO 9001; IATF 16949
PT4 – PT200/ DIN250 or ply-wood spool or customized
|Factory Introduction :|
Henan Huayang Copper Group is the first enterprises manufacturing winding wire in Henan Province. Main products include PEW enameled copper wire, EIW enameled copper (Aluminium) wire, EI/AIW enameled copper (Aluminium) wire, EIW/A enameled copper wire,Enameled and glass-fiber copper (Aluminium)wire, Paper Covered wire, Glass fiber wire, Film Covered Wire, Bare Wire, Corona Resistance enameled Round Copper Wire and Copper Accessories (Plastic Spool, insulating paint and Cable wire ).
Group insist the ``quality and efficiency`` principle, in accordance with the ``Made in China 2025`` and China the 13th Five-year Plan to make the Group 2016-2020 the Third Five-year Development Plan. Make efforts to enhance science and technology innovation and product R&D capability. Strengthen the investment for new product R&D. Facing the well-known electrical equipment manufacturing enterprises to realize ``change for manufacturing to create``. Brand position is ``different fields to implement a dedicated, exclusively for the product``. Market positioning is ``Stabilize the end user, develop the high-end user``. Corporate positioning is ``internet + trade + production``. Improve management and technical level. To ensure product quality, create brand and corporate culture. Do the leading manufacturer of winding wire in the industry.
Production Process :
Production Process :
We have imported machine to protect the quality of enameled wire. the kind of production process has checked staff. our enameled copper or aluminium wire through 8 steps process to be finished products.
Our enameled copper or aluminum wire apply to Motor, transformer, mutual inductor, automotive electrical, rotor,handiwork and so on.
|Package & requirements :|
Wooden spool (250*500/250*400/250*600 )+Wooden box
Also can need clients' requirements.
|Our services :|
1) Free samples are available.(100-150 cm is free.)
2) Price depends on the size of clients' order and excellent quality.
3) Advanced Technology & Management with senior professional team.
4) Strong production ability and shipment on-time.
5) Supply you nice after-sale service & technical guidance.
