Non Woven/ Polyester/ Polyimide Film Covered Copper Wire

Unit Price: USD 8.7000 / Ton
Payment Type: L/C,T/T,Money Gram
Incoterm: FOB,CFR,CIF,CIP
Min. Order: 1 Ton
Delivery Time: 15 Days

Basic Info

Model No.: MBS

Insulation Level: C, H, F, B, Other, C

Certification: ISO9001, RoHS, Other

Brand: Other

Application: Transformer, Electrical Equipment, Motor, Other, Double Or According To Your Requriment

Shape: Round Wire

Conductor Material: Copper Wire

Breakkdown Voltage: ≥2.5KV

Reround Angle: ≤45°

ELONGATION: ≥30%

Electrical Resistivity: ≤0.017241Ω·mm²/m

Thermal Shock Temperature: ≥200℃

Adhesion: 32%

Width(b): 0.90 - 5.60

Rectangular: Thickness(a): 3.15 - 16

Additional Info

Packaging: Wooden Pallet or Wooden Box

Productivity: Above 50 Thousand Ton

Brand: Huaon

Transportation: Ocean,Land

Place of Origin: Xinxiang, Henan, China

Supply Ability: 100000 Ton One year

Certificate: IATF16949 / ISO9001 / RoHS

HS Code: 85441100

Port: Qingdao,Shanghai,Ningbo

Product Description

Product Information :


Non Woven/ Polyester/ Polyimide Film Covered Copper Wire


   Non Woven/ Polyester/ Polyimide Film Copper Wire for motor, transformer winding, modern instrument, Generator, welding machine.

   The product is the premium copper or aluminum to be enameled, then to be wrapped with polyester film or polyimide film so as to enhance the breakdown voltage of enameled wire. It has the advantages of thin insulation thickness, high voltage resistance. The product is the ideal material for electrical instruments of small size, large power, high reliability.

    The bare electrical aluminum wire from extrusion process is the most ideal materials to produce Fiberglass Covered Insulated rectangular aluminum wire.

a) Excellent resistance to abrasion and solvent,

b) Excellent electricity performance

c) Excellent heat shock, adherence and flexibility,

d) High cut through

e)Resistance to high voltage in oil;

f)Rise up the filling coefficient of the transformer;

g)Reduce volume and the cost of the transformer

Conductor

Copper

Dimension(mm)

Rectangular: Thickness(a): 0.90 ~ 5.60

           Width(b): 3.15 ~ 16.00

Insulation Thickness

Polyester / Polyimide Film

(Single, double or according to your requirement)

Standard

IEC; ISO9000; ISO9001; IATF16949

Packing

160kg~180kg ply-wood spool(250*500; 250*600)

Application

Transformer, welding machine, electromagnet or other similar electrical equipment.

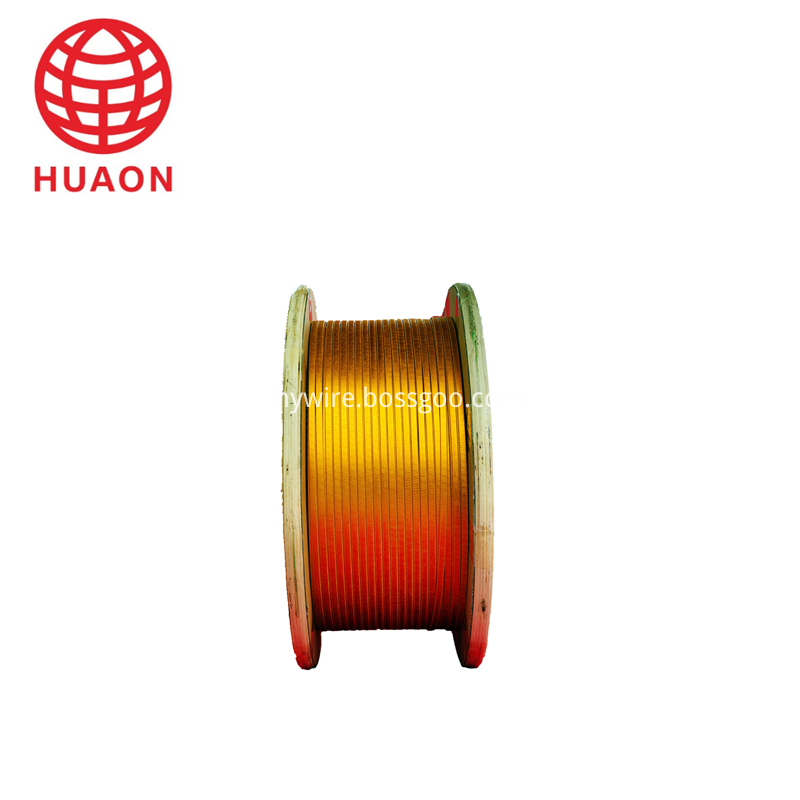

Polyimide Film Covered


Factory Introduction :



    Henan Huayang Copper Group is the first enterprises manufacturing winding wire in Henan Province. Main products include PEW enameled copper wire, EIW enameled copper (Aluminium) wire, EI/AIW enameled copper (Aluminium) wire, EIW/A enameled copper wire,Enameled and glass-fiber copper (Aluminium)wire, Paper Covered wire, Glass fiber wire, Film Covered Wire, Bare Wire, Corona Resistance enameled Round Copper Wire and Copper Accessories (Plastic Spool, insulating paint and Cable wire ).



    Group insist the ``quality and efficiency`` principle, in accordance with the ``Made in China 2025`` and China the 13th Five-year Plan to make the Group 2016-2020 the Third Five-year Development Plan. Make efforts to enhance science and technology innovation and product R&D capability. Strengthen the investment for new product R&D. Facing the well-known electrical equipment manufacturing enterprises to realize ``change for manufacturing to create``. Brand position is ``different fields to implement a dedicated, exclusively for the product``. Market positioning is ``Stabilize the end user, develop the high-end user``. Corporate positioning is ``internet + trade + production``. Improve management and technical level. To ensure product quality, create brand and corporate culture. Do the leading manufacturer of winding wire in the industry.


Non Woven Covered Copper Wire

Production Process :


  • Raw Material For Smelting : Copper Rod / Copper Bar/ Aluminum Rod
  • Drawing Rolling :Wire From Copper Rod
  • Annealing : High Temperature resistance
  • Japanning : Wire covered Polyester
  • Finished Product : Enameled Copper Wire
  • Detection :Check the finished product
  • Package : PT25/60/90/200 or Wooden Spool
  • Shipping : Container



Polyester Film Covered Copper Wire



Application :

1. Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads Microwave transformers;

   Windings with light weight, high conductivity, good heat resistance;

   Winding used for high frequency signal transmission

    Enameled wire used in small-motor rotor winding .etc.

    Magnet wires used in monitor deflection coil;

    Magnet wires used in degaussing coil;

    Other special magnet wire.

 2. Automotive sensors and coils as relais and ignition coils

 3. Generators, dry-type or oil-immersed.

 4. Anti-explosion motor, air-conditioner compressor, washing machine, Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household        electromotors and micro-motors;

 5. Military and space applications.


Apllication Of Enameled Wire

Package & Requirements :

Normal Packing :Plastic bobbin (PT25 / PT60 / PT90 / PT200)+Carton+Pallet / Wooden box

                           Wooden spool (250*500/250*400/250*600 )+Wooden box


Polyimide Film Covered Copper Wire



Inner packing: in different plastic spools(Plastic Spool of PT-4,PT-10,PT-15,PT-25) according to your wire diameters.

Outer packing: wooden spool and wooden case or According customers' special requirement.




Our Service :


  • Free samples are available.(100-150 cm is free)
  • Price depends on the size of clients' order and excellent quality.
  • Advanced Technology & Management with senior professional team.
  • Strong production ability and shipment on-time.
  • Supply you nice after-sale service & technical guidance.



Contact Us :

Contact ALisa Lee
