|Unit Price:||USD 5.0000 / Ton |
|Payment Type:||L/C,T/T,Money Gram|
|Min. Order:||1 Ton|
|Delivery Time:||15 Days|
Model No.: ZB
Insulation Level: C, H, F, B, Other
Certification: ISO9001, RoHS, Other
Application: Transformer, Electrical Equipment, Motor, Other, Double Or According To Your Requriment
Shape: Round Wire
Conductor Material: Copper Wire
Conductor Wire Diameter: ± 0.010mm
Breakkdown Voltage: ≥2.5KV
Reround Angle: ≤45°
Electrical Resistivity: ≤0.017241Ω·mm²/m
Thickness(mm): 0.90 ~ 5.60
Width(mm): 3.15 ~ 16.00
Packaging: Wooden Pallet or Wooden Box
Productivity: Above 50 Thousand Ton
Place of Origin: Xinxiang, Henan, China
Supply Ability: 100000 Ton One year
Certificate: IATF16949 / ISO9001 / RoHS
HS Code: 85441100
|Product Information :|

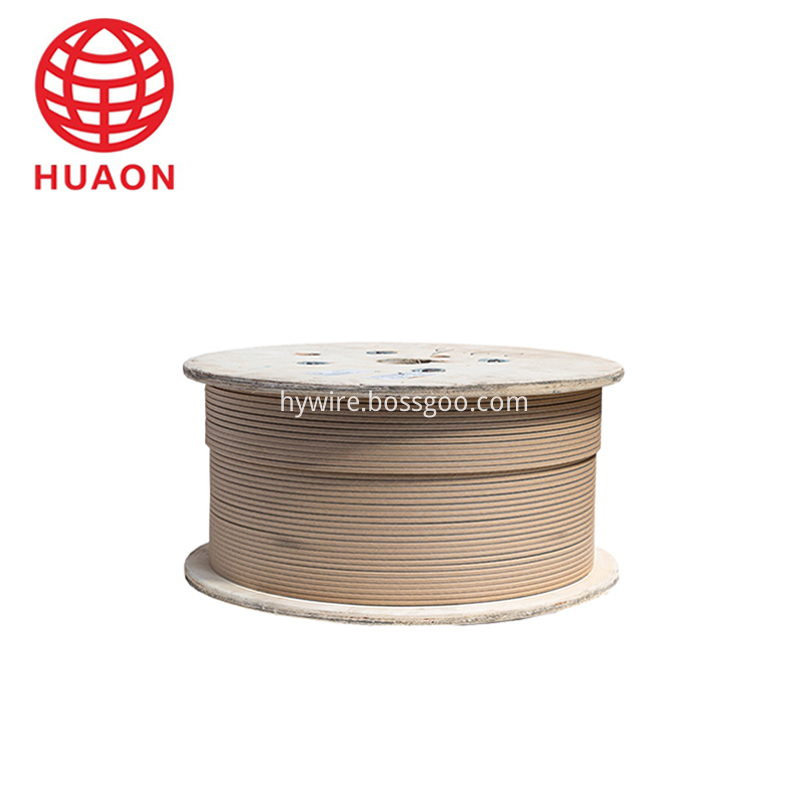

Paper Insulation Covered Copper Wire For Transformer
Paper Insulation Covered Copper Wire apply to Motor, transformer, mutual inductor, automotive electrical, rotor, handiwork, Transformer, welding machine, electromagnet or other similar electrical equipment.and so on.
This product is processed using the insulation materials such as kraft paper, NOMEX paper, miki paper to wrap spirally around the conductor. Paper covered wire can be applied to the coil winding of various oil-immersed transformers, lifting electromagnet, electric weldong machine.
1. High voltage resistance. Kraft paper wrapped wire is special materials for the coil winding of oil-immersed transformers and similar electric appliance
2. High elasticity
3. Good flexibility
4. Good wear resistance
5. Excellent corrosion acid and basic resistance.
6. High voltage resistance
Rectangular: Thickness(a): 0.90 ~ 5.60
Width(b): 3.15 ~ 16.00
Insulation Material Type
(Single, double, triple multi-layers or according to your requirement)
IEC; ISO9000; ISO9001; IATF16949
160kg~180kg ply-wood spool(250*600)
Factory Introduction :
Henan Huayang Copper Group is the first enterprises manufacturing winding wire in Henan Province. Main products include PEW enameled copper wire, EIW enameled copper (Aluminium) wire, EI/AIW enameled copper (Aluminium) wire, EIW/A enameled copper wire,Enameled and glass-fiber copper (Aluminium)wire, Paper Covered wire, Glass fiber wire, Film Covered Wire, Bare Wire, Corona Resistance enameled Round Copper Wire and Copper Accessories (Plastic Spool, insulating paint and Cable wire ).
Group insist the ``quality and efficiency`` principle, in accordance with the ``Made in China 2025`` and China the 13th Five-year Plan to make the Group 2016-2020 the Third Five-year Development Plan. Make efforts to enhance science and technology innovation and product R&D capability. Strengthen the investment for new product R&D. Facing the well-known electrical equipment manufacturing enterprises to realize ``change for manufacturing to create``. Brand position is ``different fields to implement a dedicated, exclusively for the product``. Market positioning is ``Stabilize the end user, develop the high-end user``. Corporate positioning is ``internet + trade + production``. Improve management and technical level. To ensure product quality, create brand and corporate culture. Do the leading manufacturer of winding wire in the industry.
Production Process :
1. Small transformers,linear motors,relays,solenoids,small motor,clock coils,watch coils, magnetic heads
2. Automotive sensors and coils as relais and lignition coils
3. Generators,dry-type or oil-immersed
4. Anti-explosion,air-conditioner compressor,washing machine
5. Military and space applications
Package & Requirements :
Wooden spool (250*500/250*400/250*600 )+Wooden box
Our Products will be made the most inner plastic packaging. Then the product will be packed in cartons and wooden cases as double protection to protect enameled inding wire from wear and tear during transport.
Packing: wooden spool and wooden case or According customers' special requirement.
